Place of Origin:
CHINA
Brand Name:
TOP GOLF
Certification:
CE
Model Number:
EV4+2G
Description
Model No.:EV4+2G
Charger:computer intelligent charger
Motor:48V/4KW
Battery:Chaowei battery,8V*6
Transaxle:12.31:1
Overall Size:3450*1200*1880mm
Ground clearance:110mm
Tread distance:front900/rear1000mm
Net weight:575kg
Loading:4 people
Braking dist:<6m
Turning radius:2.9m
Climbing ability:25%
Maximum mileage:100km
Performance
Body and Frame
|
|||
Frame (Chassis)
|
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
|
||
Body and Roof
|
PP plastic front body and rear body; FRP roof
|
||
Windshield
|
Organic plastic windshield, one-piece
|
||
Roof supports
|
Carbon Steel, powder coated
|
||
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
||
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
||
Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
||
Side trim
|
Aluminum alloy
|
||
Sider mirror
|
2pcs, foldable
|
||
Electric System
|
|||
Lighting system and horn
|

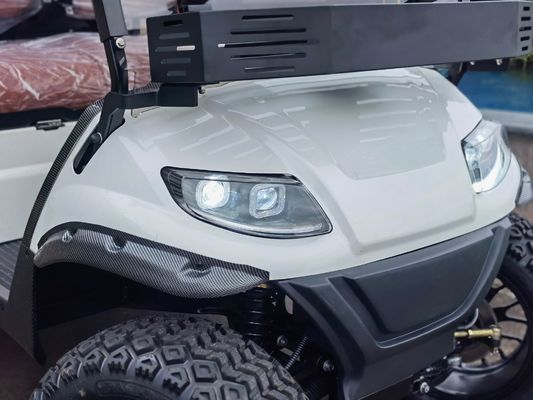

All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
|
||
Backup Buzzer
|
12V
|
||
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
|
||
Steering, Brake, Transmission and Suspension
|
|||
Steering System
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
||
Brake system
|
Rear wheel mechanical brake, foot activated parking brake
|
||
Accelerator
|
Stepless speed change
|
||
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
||
Rear axle
|
Integrated, Gear ratio12.49:1
|
||
Suspension system
|
Front and rear plate leaf spring + cylinder hydraulic shock absorber
|
1. Delivery date: 15 days for mass producing
2. 1*20'GP fit 8 units.1*40'HQ fit 21 units.
3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.
