Name: Maximum Speed Electric 30mph TOP Golf Cart Customizable Color High End Upgradeable EV4+2G
Brand: TOP GOLF CO.,LTD
SKU: EV4+2G
Price: 5,400.00 USD
Availability: InStock

Home > Products > Electrical Golf Cart >

Maximum Speed Electric 30mph TOP Golf Cart Customizable Color High End Upgradeable EV4+2G

High End Electric Golf Cart

30mph Electric Golf Cart

Customizable Color Electric Golf Cart

Place of Origin:

China & Vietnam

Brand Name:

TOP GOLF

Certification:

Model Number:

EV4+2G

Request A Quote

Product Details

Name:

4 Seaters Electric Golf Cart

Color:

Customized Color

Curb Weight:

400-500kg

Maximum Speed:

≤30mph

Driving Mileage:

70-90 Mileage

Battery Voltage:

48V

OEM/ODM:

Available

Material:

Acrylic/perspex/lucite/plastic

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

Negotiable

Packaging Details

Container

Delivery Time

15-20 Work days

Payment Terms

L/C, T/T, T/T, Western Union, Western Union

Supply Ability

3000 Unit/Units per Month

OEM / ODM Street Legal Electric Golf Carts 4 Seaters

Get Best Price

Maximum Speed Electric 30mph Golf Cart Customizable Color High End Upgradeable

Get Best Price

Video

OEM ODM 4 Wheel Disc Brake Off Road Wheel High Chassis Mini Electric Golf Carts 10 Inch IP66 Display 4 Seater Golf Cart

Get Best Price

Video

OEM ODM 4 Wheel Disc Brake Off Road Wheel High Chassis Mini Electric Golf Carts 10 Inch IP66 Display 4 Seater Golf Cart

Get Best Price

Contact Now

Product Description

Electric Golf Cart Customizable Color High-End Upgradeable

Description

Model No.:EV 4+2G

Charger:computer intelligent charger

Motor:48V/4KW

Battery:Chaowei battery,8V*6

Transaxle:12.31:1

Overall Size:3450*1200*1880mm

Ground clearance:170mm

Tread distance:front900/rear1000mm

Net weight:525kg

Loading:4 people

Braking dist:<6m

Turning radius:2.9m

Climbing ability:25%

Maximum mileage:100km

Optional Spare Parts

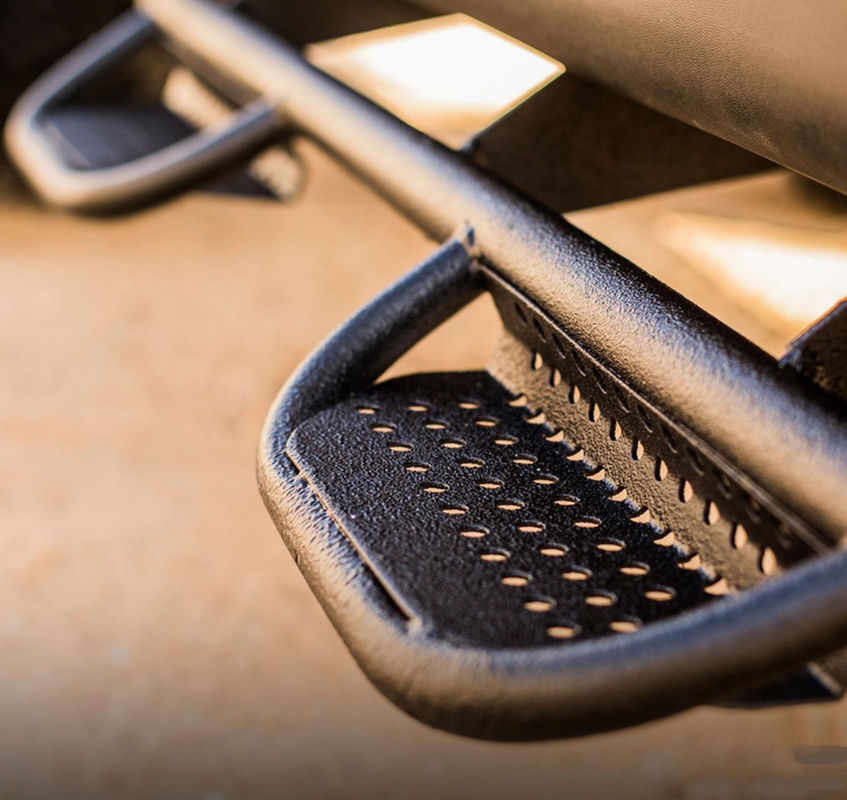

Speaker, Underbody lighting,side step,front clay basket,seats cover, security light,cargo box, rear canopy, ice box, caddie plate, body cover,
rain cover, sun curtains, sand rake, sand box, speed meter

Performance

Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; FRP roof
Windshield	Organic plastic windshield, one-piece
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Aluminum alloy
Sider mirror	2pcs, foldable
Electric System
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Charger	Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
Steering, Brake, Transmission and Suspension
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Rear wheel mechanical brake, foot activated parking brake
Accelerator	Stepless speed change
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
Suspension system	Front and rear plate leaf spring + cylinder hydraulic shock absorber

Packaging & Shipping

1. Delivery date: 15 days for mass producing

2. 1*20'GP fit 4 units.1*40'HQ fit 16 units.

3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.

Our Service

We provide 12 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.

Why choose us?

a. Delivery in Time

b. High quality with reasonable price

c. Quick response to all your inquiry for 5 minutes.

d. Provide customers with high quality products and efficient service.
