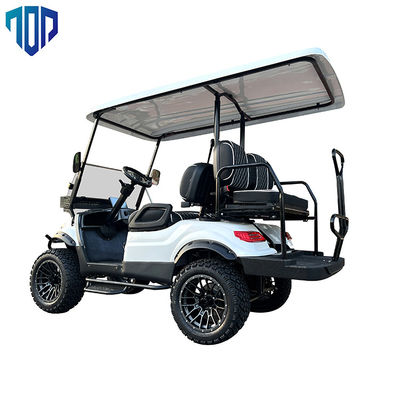

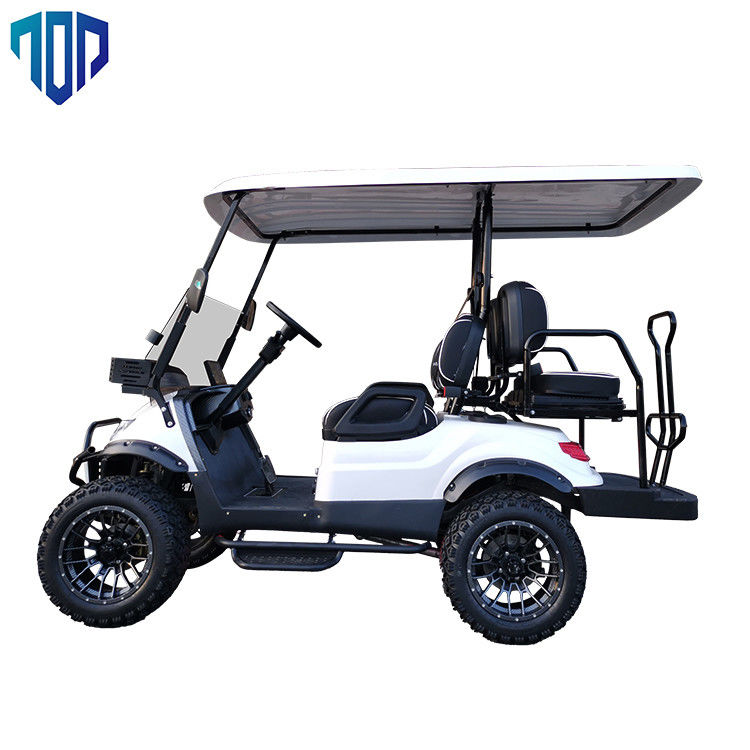

Customizable Color Electric Golf Cart High End Up Gradable 25Km/H Maximum Speed

Customizable Color Electric Golf Cart High End Up Gradable 25Km/H Maximum Speed

  • High Light

    Lucite Electric Golf Cart

    ,

    Perspex Electric Golf Cart

    ,

    25Km/H Electrical Golf Cart

  • Name
    4 Seaters Electric Golf Cart
  • Color
    Customized Color
  • Curb Weight
    400-500kg
  • Maximum Speed
    ≤25Km/h
  • Driving Mileage
    70-90km
  • Battery Voltage
    48V
  • OEM/ODM
    Available
  • Material
    Acrylic/perspex/lucite/plastic
  • Place of Origin
    CHINA
  • Brand Name
    TOP GOLF
  • Certification
    CE
  • Model Number
    EV 2+2 FF
  • Minimum Order Quantity
    1 PCS
  • Price
    Negotiable
  • Packaging Details
    Container
  • Delivery Time
    15-20 Work days
  • Payment Terms
    L/C, T/T, T/T, Western Union, Western Union
  • Supply Ability
    3000 Unit/Units per Month

Customizable Color Electric Golf Cart High End Up Gradable 25Km/H Maximum Speed

Electric Golf Cart Customizable Color High-End Upgradeable 25Km/H Maximum Speed

Optional Spare Parts

foldable windshield, seat belts, seats cover, security light, swiss cargo box, rear canopy, ice box, caddie plate, body cover,
rain cover, sun curtains, sand rake, sand box, speed meter



Description



Model No.:EV 2+2 FF

Charger:computer intelligent charger

Motor:48V/4KW

Battery:Chaowei battery,8V*6

Transaxle:12.31:1

Overall Size:2790*1200*1880mm

Ground clearance:110mm

Tread distance:front900/rear1000mm

Net weight:525kg

Loading:4 people

Braking dist:<6m

Turning radius:2.9m

Climbing ability:25%

Maximum mileage:100km

Customizable Color Electric Golf Cart High End Up Gradable 25Km/H Maximum Speed 0

Performance



Body and Frame
Frame (Chassis)
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof
PP plastic front body and rear body; FRP roof
Windshield
Organic plastic windshield, one-piece
Roof supports
Carbon Steel, powder coated
Backrest and Seat
Reborn Sponge, artificial leather + plastic armrest
Floor
Galvanized Steel plate and anti-slip rubber floor mat
Dashboard
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim
Aluminum alloy
Sider mirror
2pcs, foldable
Electric System
Lighting system and horn
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer
12V
Charger
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
Steering, Brake, Transmission and Suspension
Steering System
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Rear wheel mechanical brake, foot activated parking brake
Accelerator
Stepless speed change
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio12.49:1
Suspension system
Front and rear plate leaf spring + cylinder hydraulic shock absorber




Packaging & Shipping


1. Delivery date: 15 days for mass producing

2. 1*20'GP fit 4 units.1*40'HQ fit 16 units.

3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.



Our Service

We provide 12 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
