High speed 25mph Golf Cart made in China custermized body cover seat diamond stiching

High speed 25mph Golf Cart made in China custermized body cover seat diamond stiching

golf cart overhead storage tray

golf cart dash tray

Place of Origin:

CHINA

Brand Name:

Top Golf

Certification:

CE

Model Number:

EV.2+2G

Contact Us
Request A Quote
Product Details
Speed:
25mph
Distance Mileage:
68mile
Grade Ability:
25%
Brake Distance:
<3.5m
Ground Clearance:
170mm
Charging Time:
6-8 Hours
Weight:
575kg
Motor:
48V5KW
Charger:
48V20A
Controller:
48V400-450A
Battery:
Lead Acid Battery/lithium Battery
Tyre:
22*10-14
Steering:
Bidirectional Rack And Pinion Steering System,automatic Clearance Compensation Function
Brake System:
Four Wheel Disc Brake With EM Park Brake
Front Syspension:
Double A Arm
Color:
Green,wihte,black,blue,grey
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiation
Packaging Details
Cartoon Package
Delivery Time
10-15 WORK DAYS
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000 PCS
Product Description

High speed 25mph Golf Cart made in China custermized body cover seat diamond stiching

Description



Model No.:EV 2+2G

Charger:computer intelligent charger

Motor:48V/4KW

Battery:Chaowei battery,8V*6

Transaxle:12.31:1

Overall Size:2970*1200*1880mm

Ground clearance:170mm

Tread distance:front900/rear1000mm

Net weight:575kg

Loading:4 people

Braking dist:<6m

Turning radius:2.9m

Climbing ability:25%

Maximum mileage:100km


Optional Spare Parts

Speaker, Underbody lighting,side step,front clay basket,seats cover, security light,cargo box, rear canopy, ice box, caddie plate, body cover,
rain cover, sun curtains, sand rake, sand box, speed meter



Performance



Body and Frame
Frame (Chassis) Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof PP plastic front body and rear body; FRP roof
Windshield Organic plastic windshield, one-piece
Roof supports Carbon Steel, powder coated
Backrest and Seat Reborn Sponge, artificial leather + plastic armrest
Floor Galvanized Steel plate and anti-slip rubber floor mat

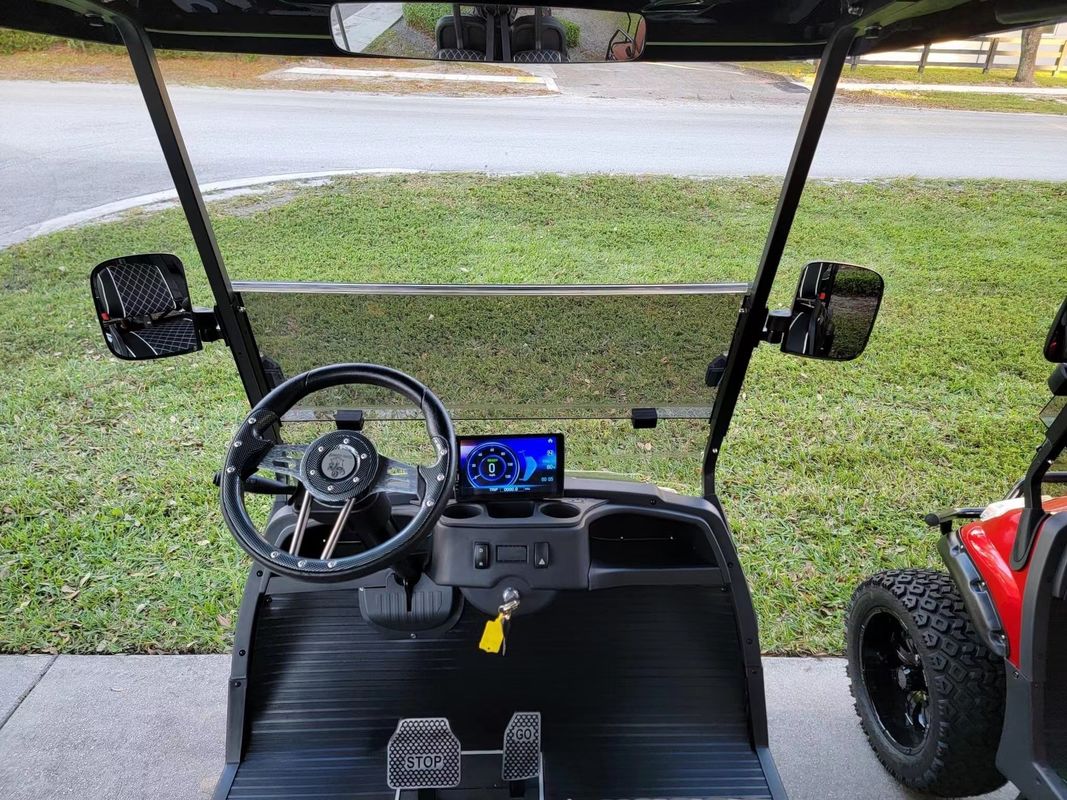

Dashboard Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim Aluminum alloy
Sider mirror 2pcs, foldable
Electric System
Lighting system and horn All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer 12V
Charger Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
Steering, Brake, Transmission and Suspension
Steering System Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system Rear wheel mechanical brake, foot activated parking brake
Accelerator Stepless speed change
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Gear ratio12.49:1
Suspension system Front and rear plate leaf spring + cylinder hydraulic shock absorber




Packaging & Shipping


1. Delivery date: 15 days for mass producing

2. 1*20'GP fit 8 units.1*40'HQ fit 21 units.

3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.
